RF Limiter

Wei Bo Associates HK, LTd. offers a family of passive and quasi-active High Power RF Limiters which operate from HF to Ku Band frequency ranges with power handling capabilities up to +60 dBm. These RF Limiters provide "Always On" protection which afford complete protection to sensitive RF receivers, even when the system is turned off.

Limiter
Limiter Module Limiter Description Frequency
(GHz)		 Insertion
Loss
(dB)		 Return
Loss
(dB)		 CW Input
Power
(dBm)		 Peak Input
Power
(dBm)		 Flat
Leakage
Power
(dBm)		 Spike
Leakage
(ergs)		 Recovery
Time
(nsec)		 Status
RFLM-200802MA-299 Passive, SMT 0.020 - 8.0 1.0 15 44 51 20 0.2 500

RELEASED
RFLM-300301QC-290 Quasi-Active, SMT 0.03 - 0.3 0.7 15 56 56 19 0.5 7,500 Q2/21
RFLM-300511QA-392 Quasi-Active, SMT 0.03 - 0.5 0.7 13 56 60 19 0.5 5,000

RELEASED
RFLM-301511QC-290 Quasi-Active, SMT 0.3 - 0.5 0.7 15 56 56 19 0.5 5,000

RELEASED
RFLM-301511QC-392 Quasi-Active, SMT 0.3 - 0.5 0.7 15 56 56 19 0.5 5,000

RELEASED
RFLM-401102QA-290 Quasi-Active, SMT 0.4 - 1.0 1.4 15 43 50 20 0.2 5,000 Q3/21
RFLM-401102QB-290 Quasi-Active, SMT 0.4 - 1.0 0.3 17 50 60 18 0.50 5,000 Q3/21
RFLM-401102QC-290 Quasi-Active 0.4 - 1.0 0.3 17 50 60 18 0.5 5,000 Q3/21
RFLM-501202LC-299 Passive, SMT 0.4 - 2.5 0.4 20 36 51 21 0.2 750

RELEASED
RFLM-501202MC-299 Passive, SMT 0.25 - 3.5 0.4 20 45 54 21 0.3 500

RELEASED
RFLM-052402QC-290 Quasi-Active, SMT 0.5 - 4.0 0.5 18 53 63 17 0.5 1,500

RELEASED
RFLM-961122MC-299 Passive, SMT 0.96 - 1.2 0.2 17 48 60 14 0.3 200

RELEASED
RFLM-961122XC-392 Quasi-Active, SMT 0.96 - 1.2 0.7 15 53 63 14 0.5 1,000 Q2/21
RFLM-011014QC-290 Quasi-Active, SMT 1.0 - 2.0 0.25 20 56 56 17 0.5 1,500

RELEASED
RFLM-102202HC-290 Quasi-Active, SMT 1.0 - 2.0 0.7 15 47 53 17 0.3 3,000 Q2/21
RFLM-102202QA-290 Quasi-Active, SMT 1.0 - 2.0 0.25 20 50 60 17 0.5 1,500

RELEASED
RFLM-102202QB-290 Quasi-Active, SMT 1.0 - 2.0 0.25 20 50 60 17 0.5 1,500

RELEASED
RFLM-102202QC-290 Quasi-Active, SMT 1.0 - 2.0 0.25 20 50 60 17 0.5 1,500

RELEASED
RFLM-102202XA-290 Quasi-Active, SMT 0.5 - 2.0 0.7 15 57 60 20 0.5 1,000

RELEASED
RFLM-011015QF-290 Quasi-Active, SMT 2.0 - 4.0 0.5 14 50 56 15 0.5 750

RELEASED
RFLM-102402QE-290 Quasi-Active, SMT 1.0 - 4.0 0.35 16 50 60 15 0.5 1,000

RELEASED
RFLM-102402QF-290 Quasi-Active, SMT 1.0 - 4.0 0.35 16 50 60 15 0.5 1,000

RELEASED
RFLM-252352QA-290 Quasi-Active, SMT 2.5 - 3.5 0.6 15 47 62 23 0.3 1,500 Q3/21
RFLM-252352QB-290 Quasi-Active, SMT 2.5 - 3.5 0.6 15 47 62 23 0.3 1,500 Q3/21
RFLM-252352QC-290 Quasi-Active, SMT 2.5 - 3.5 0.6 15 47 62 23 0.3 1,500 Q3/21
RFLM-262322HC-151 Quasi-Active, SMT 2.6 - 3.2 0.65 18 43 50 10 0.5 100

RELEASED
RFLM-202402QA-290 Quasi-Active, SMT 2.0 - 4.0 0.5 14 50 60 20 0.5 750

RELEASED
RFLM-202402QB-290 Quasi-Active, SMT 2.0 - 4.0 0.5 14 50 60 20 0.5 750

RELEASED
RFLM-202402QC-290 Quasi-Active, SMT 2.0 - 4.0 0.5 14 50 60 20 0.5 750

RELEASED
RFLM-202402QE-290 Quasi-Active, SMT 2.0 - 4.0 0.5 16 50 60 15 0.5 1,000

RELEASED
RFLM-202402QF-290 Quasi-Active, SMT 2.0 - 4.0 0.5 16 50 60 15 0.5 1,000

RELEASED
RFLM-202602HA-299 Passive, SMT 2.0 - 6.0 0.85 14 35 50 18 0.1 1,000 Q3/21
RFLM-202602HC-299 Passive, SMT 2.0 - 6.0 0.85 14 35 50 18 0.1 1,000 Q3/21
RFLM-502602HC-491 Passive, SMT 5.0 - 6.0 0.6 15 48 57 14 0.5 700 Q3/21
RFLM-202802LC-299 Passive, SMT 2.0 - 8.0 1.1 15 36 50 19 0.2 750

RELEASED
RFLM-202802MC-299 Passive, SMT 2.0 - 8.0 0.6 15 45 53 20 0.3 1,500

RELEASED
RFLM-202802QA-290 Quasi-Active, SMT 2.0 - 8.0 1.1 13 50 60 21 0.5 5,000

RELEASED
RFLM-202802QB-290 Quasi-Active, SMT 2.0 - 8.0 1.1 13 50 60 21 0.5 5,000

RELEASED
RFLM-202802QC-290 Quasi-Active, SMT 2.0 - 8.0 1.1 13 50 60 21 0.5 5,000

RELEASED

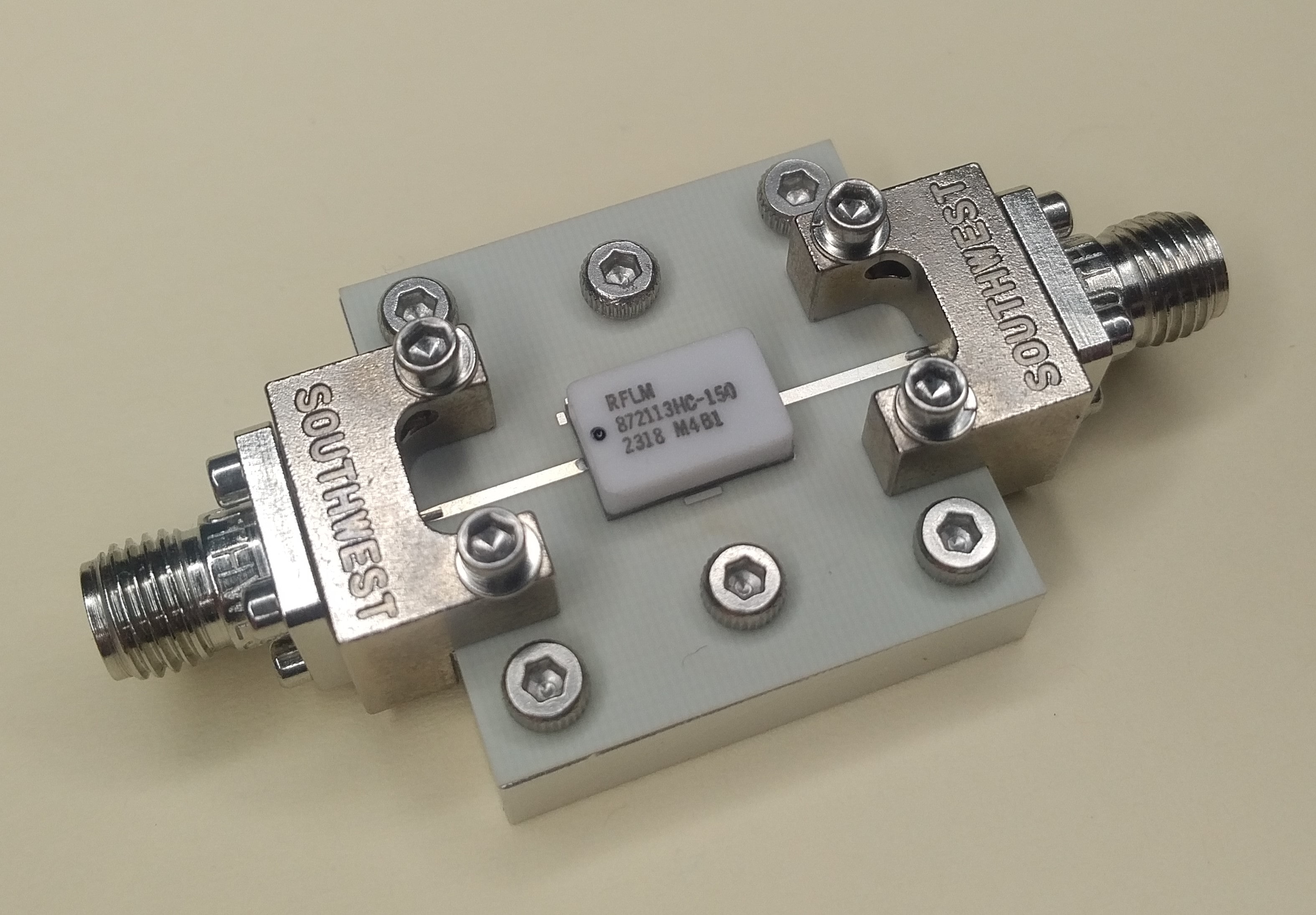

RFLM-872113HC-150 Passive, SMT 8.7 - 10.7 1.5 15 42 46 14 0.5 500

RELEASED
RFLM-802123QC-291 Passive, SMT 9.0 - 10.6 1.3 13 49 53 20 0.5 3,000

RELEASED
RFLM-143173HC-150 Passive, SMT 14.0 - 17.0 1.2 15 46 50 14 0.5 700 Q2/21
